Place of Origin: | China |
ब्रांड नाम: | BK |
प्रमाणन: | ISO9001/ISO14001 |
Model Number: | D80-1.7 |
Minimum Order Quantity: | 1 set |
---|---|
मूल्य: | Negotiation |
Packaging Details: | Export standard wooden case |
Delivery Time: | 20-40 working days, depends on order amount and specification |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 SETS per month |
वायु क्षमता: | 80m3 / मिनट | डिस्चार्ज अंतर दबाव: | 70KPA |
---|---|---|---|
इंजन की शक्ति: | 132kw | डिस्चार्ज बोर: | DN300 (12 ") |
ठंडा प्रकार: | पानी | प्रेरित प्रकार: | युग्मन |
आवेदन: | सीवेज ट्रीटमेंट, स्मेल्टिंग फर्नेस, कोल प्रिपरेशन प्लांट, माइन फ्लोटेशन, केमिकल गैस, वैक्यूम इंडस्ट् | ||
प्रमुखता देना: | multi stage centrifugal blowers,high pressure centrifugal blower |

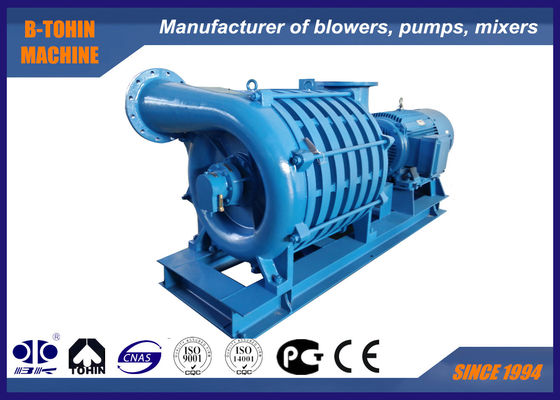

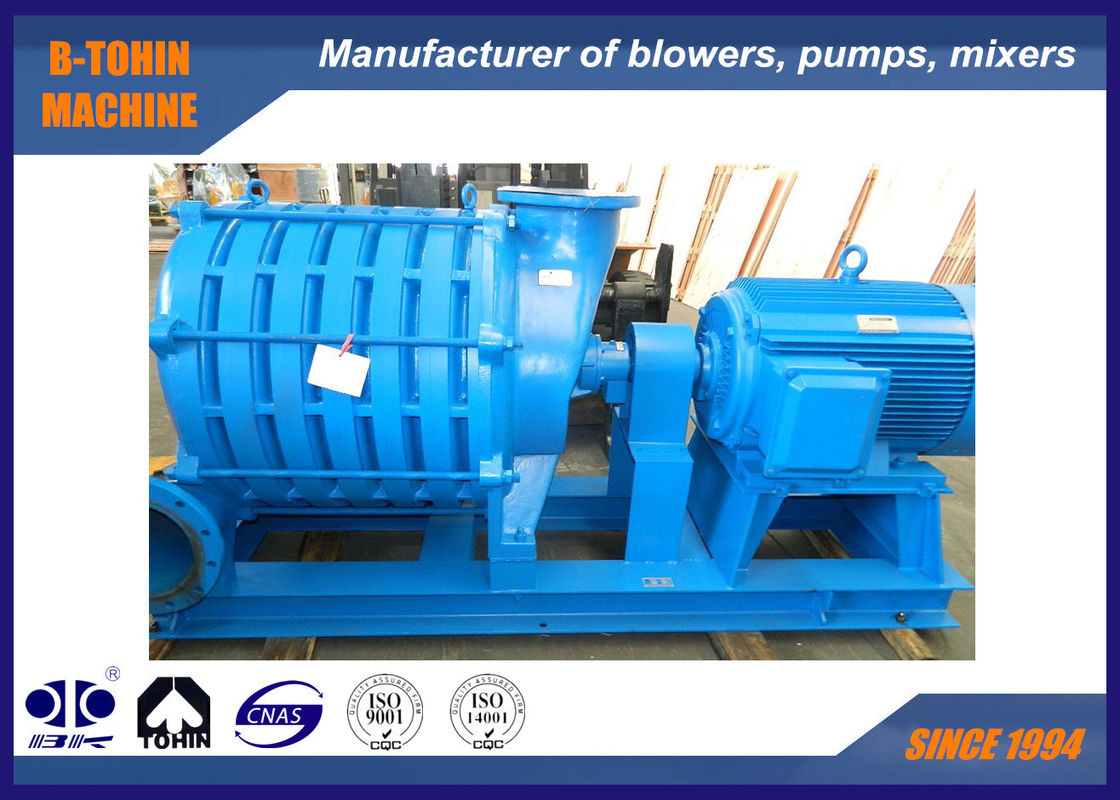

Low Noise Multistage Centrifugal Blower, wastewater treatment air blower
About D series mult-stage centrifugal blower
Specifications
Model No. |
D80-1.7 |
Discharge differential pressure |
70KPA |
Air capacity |
80m3/min |
Motor power |
132KW |
Shaft power |
110KW |
Motor type |
380/400/415/440V/6KV/10KV, 3PHASES, 50/60HZ |
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
Features
1. Vibration on bearings < 2.5mm/s for all fans and blowers
2. Long service life
3. Low noise: High efficiency type noise, sound proofed with obstacle exists, so there's nearly no noise outside the blower room.
4. Low running cost: energy consumption than other type blowers.
5. High efficiency
6. Heavy duty and sturdy construction
7. Oil free
8. Air capacity adjustable by inlet butterfly valve
Structure of blower main body
Assembling drawing of blower package
Standard supply of scope
1. Blower main body
2. Inlet muffler (with air filter)
3. Public base for motor and blower(including coupling cover)
4. Inlet manual butterfly valve
5. Motor
6. Pressure gauge
7. Mounting bolts and connection accessories
8. Check valve
