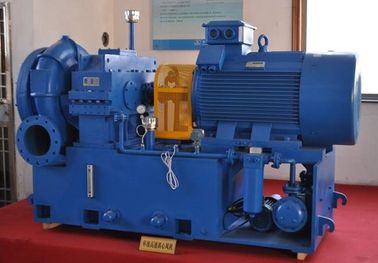

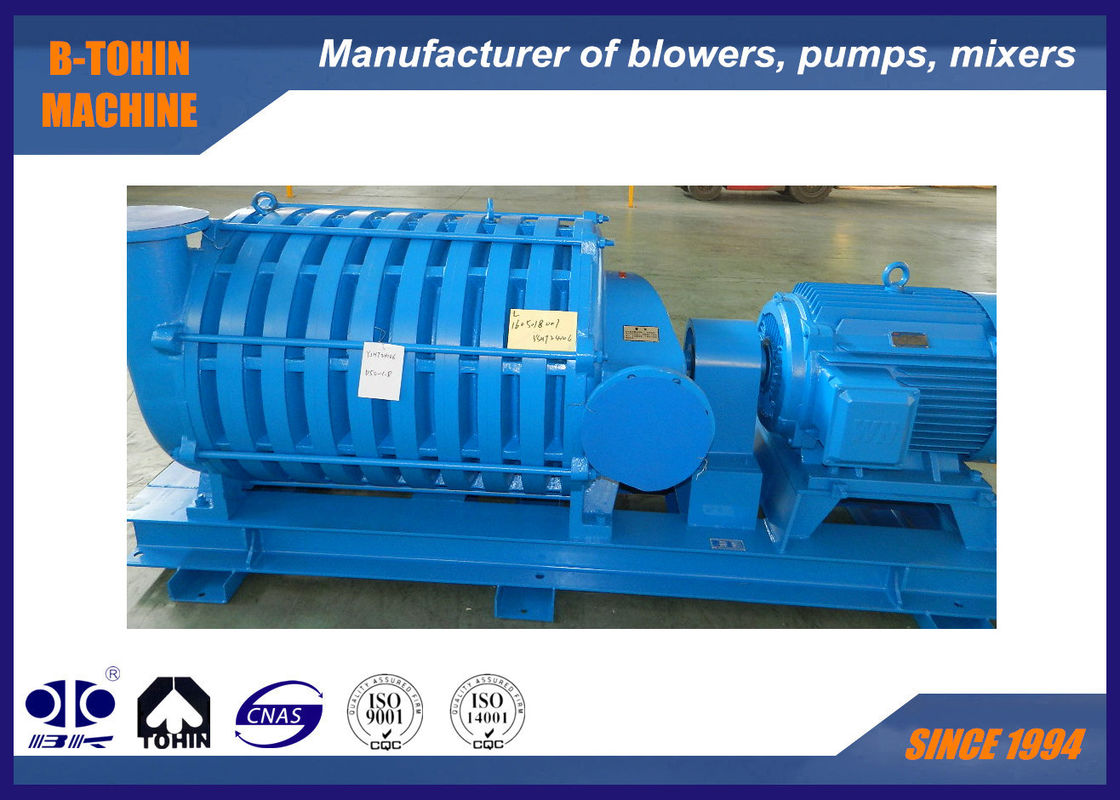

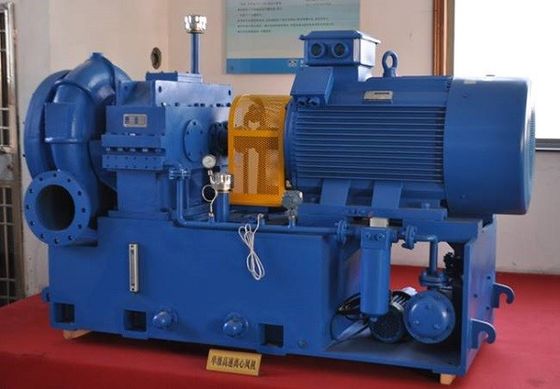

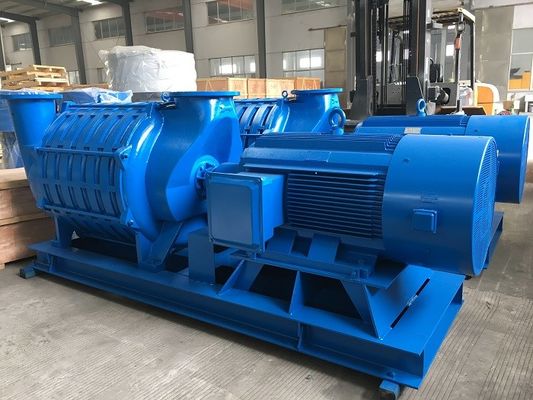

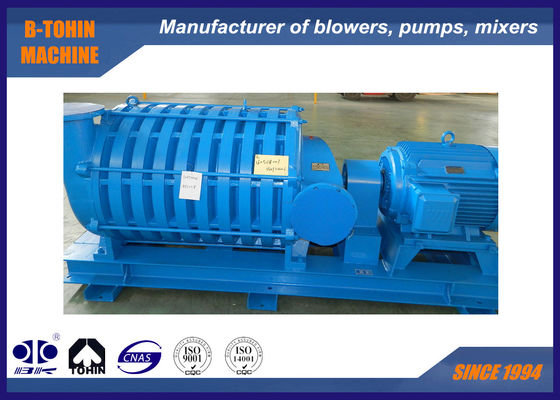

70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min

70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min

    • 70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min
  • 70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min

    उत्पाद विवरण:

    Place of Origin: China
    ब्रांड नाम: BK
    प्रमाणन: ISO9001/ISO14001
    Model Number: D50-1.7

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1 set
    मूल्य: Negotiation
    Packaging Details: Export standard wooden case
    Delivery Time: 20-40 working days, depends on order amount and specification
    Payment Terms: L/C, T/T
    Supply Ability: 10 SETS per month
    संपर्क करें
    विस्तृत उत्पाद विवरण
    वायु क्षमता: 50m3 / मिनट डिस्चार्ज अंतर दबाव: 70KPA
    इंजन की शक्ति: 90kw डिस्चार्ज बोर: DN200 (8 ")
    ठंडा प्रकार: पानी प्रेरित प्रकार: युग्मन
    आवेदन: सीवेज ट्रीटमेंट, स्मेल्टिंग फर्नेस, कोल प्रिपरेशन प्लांट, माइन फ्लोटेशन, केमिकल गैस, वैक्यूम इंडस्ट् हवा के बहाव की दिशा: ग्राहकों के विकल्प के लिए लंबवत और क्षैतिज
    हाई लाइट:

    high pressure centrifugal blower

    ,

    centrifugal air blower





    90KW Multistage Centrifugal Blower, 70KPA air compressor for backwash, 50m3/min






    About D series multi-stage centrifugal blower


    D series Multi-stage Centrifugal Blower is designed by famous institute in China and engineers of B-Tohin. The blower has several impellers connected by connection rod. The inlet air is compressed stage by stage and finally discharge air capacity from outlet.





    Specifications



    Model No.

    D50-1.7

    Discharge differential pressure

    70KPA

    Motor power

    90KW

    Air capacity

    50m3/min

    Motor type

    380/400/415/440V, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor

    Siemens and ABB motor for your option






    Features

    • Compact structure, elegant appearance, high stability, convenient installation and maintenance

    • Smooth operation

    • Low noise

    • Oil-free Blower

    • Impeller is featured with special composite linear to reduce internal leakage and improve volumetric efficiency.

    • Easy to be adjusted

    • Inlet rings are equipped for impeller of every stage, and  labyrinth seals are set between stages and at the two ends of  housing for preventing gas leakage.

    • air cooling and water cooling designed for exhaust bearing pedestal, prolonged bearing service life.

    • Two flow direction for option : vertical and horizontal

    • Blower and motor connected by coupling, other connection methods available according to different technique requirements.




    Structure of blower main body



    70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min 0








    Assembling drawing of blower package





    70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min 1



    Standard supply of scope



    1. Blower main body

    2. Inlet muffler (with air filter)

    3. Public base for motor and blower(including coupling cover)

    4. Inlet manual butterfly valve

    5. Motor

    6. Pressure gauge

    7. Mounting bolts and connection accessories

    8. Check valve



    Optional accessories:

    1. outlet silencer

    2. outlet butterfly valve (manual or eletrical)

    3. release valve

    4. release silencer

    5. reducer

    6. flexible joint

    7. acoustic enclosure

    8. control cabinet




    Dimensions of blower



    Horizontal flow direction 70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min 2 70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min 3
    Vertical flow direction 70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min 4 70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min 5



    1. blower base   2. blower main body   3. inlet silencer   4. butterfly valve   5. coupling   6. electric motor



    Model Size(mm)
    A B C
    D50-1.7 1150 1285 2630
